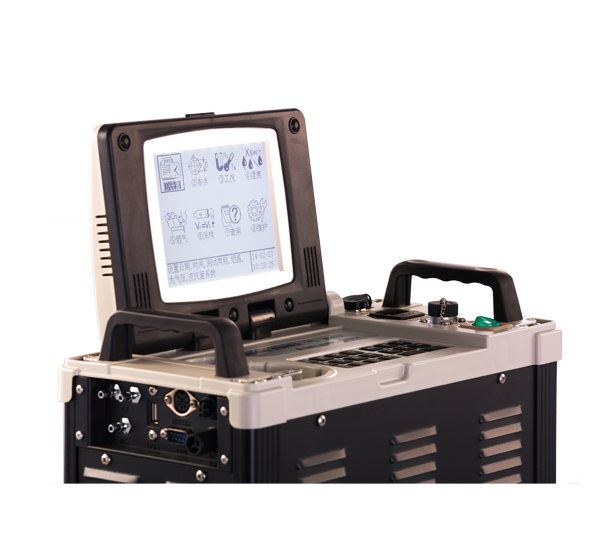

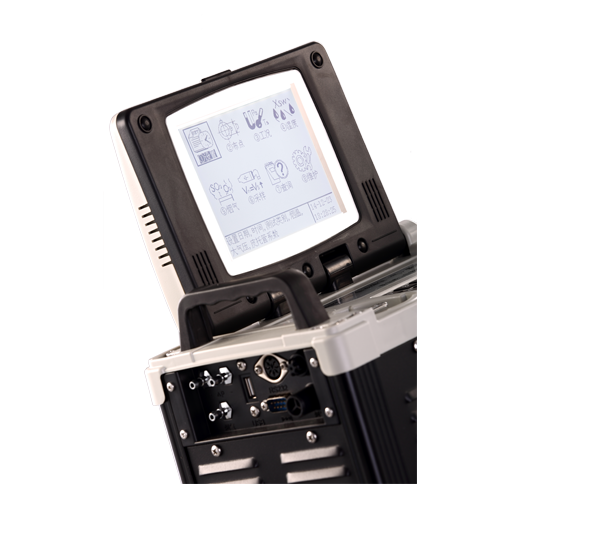

Product overview

It applies pitot tube isokinetic sampling method to collect particulate matter in stationary source emission, and applies filtering and weighting method to determine the quality. Design and application of industrial high-speed imbedded IPC control platform ensures the reliability of the instrument, improves the stability of its performance and enhances the accuracy of control. It can be used to determine emission concentration, equivalent concentration and total emission of particulate matters in stationary source emission such as various boilers, stacks and industrial furnaces. It also can automatically measure stack dynamic pressure, static pressure, the atmospheric pressure, temperature of flue gas, humidity ratio, the pressure in front of flow meter, concentrations of O₂, SO₂, CO, NO, NO₂, H₂S, CO₂, isokinetic sucking velocity and so on.

Execution standard

  HJ/T 48-1999  Technical conditions of sampler for stack dust

  JJG 968-2002  Verification regulation of flue gas analyzers

  JJG 680-2007  Verification regulation of samplers for stack dust

Product features

 Accomplished test of particulate matters in exhausted gas emission source and composition of multicomponent flue gas
 High-load, low-noise sampling pump
 Isokinetic tracking sampling with short response time
 Strong stability of anti-static and anti-interference
 Unique design of efficient gas-water separator with high efficiency of drying, improves silicone's use
 Particular dustproof and waterproof keyboard, elaborately arranged as computer keyboard, easy to operate
 Design of visible dust-filter core, with convenience for replacement and efficiency to filter the particulate matters, offering further protection of gas circuit and sampling pump
 Wide temperature large-screen LCD display, easy to operate, suitable for low-temperature environment, accomplished man-machine interactive interface
 Automatic fault detection function: Automatically detect the fault of major components and main functions, easy for user's maintenance and usage
 Dust suck-back proof function: Prevent the dust in filter cartridge from being sucked back after completion of sampling
 Developed Windows environment based computer database and communication system, accomplished storage, query and print-out through computer communication
 Intelligent software calibrating function
 Automatic software correction and compensation, effectively remove the cross interference among flue gas compositions
 small size, light weight, easy to operate, easy to carry
 High capacity data storage, supporting U-disk data dump and data review
 Adopt high speed miniature thermal printer, with high-speed and low-noise

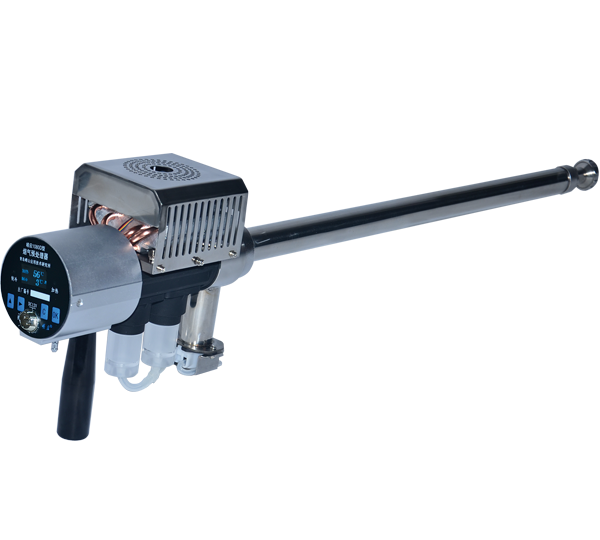

 Flue gas processor is optional, to increase the accuracy of flue gas composition test
 Low concentration stack dust multi-function sampling probe is optional, to accomplish low concentration PM sampling
 Pitch smoke sampling is optional, to measure the emission concentration of pitch smoke.
 Oil smoke sampling probe is optional, to measure the emission concentration of oil smoke for catering industry.

Explain：

The above parameters are totally up to the requirements of the relevant national standards. If product upgrades, or image does not match with real machine, please refer to the real machine.
